Infinity GFX

On-air Graphics delivery system


Infinity GFX is a comprehensive solution for the full range of ON-AIR Graphics. It includes everything needed to create the captivating ON-AIR Look, all in a powerful Turnkey System. It is designed to meet the demands of Fast-Paced, Live-to-Air Production including Live News, Sports, Elections, SMS polls and Entertainment. Infinity GFX provides Flexibility, Easy Scalability and Significant Economy.

It contains many advanced features to simplify and automate operations while allowing a great deal of Flexibility. Built for a Multi-User Environment, it allows the Administrator to efficiently distribute workload, and manage rights. Operators only see their assigned work area, thus totally eliminating chances of mistakes due to overlaps.

  • Instant and Real Time Update and On-Air Display
  • Comprehensive and Foolproof Rights Administration
  • 4-Point Animation and Layouts
  • Template-based versatile Scrolls
  • Designed for use without Programming Support
  • Regional Languages support
  • Database Structure - Integrates with Data Sources
  • Generates Database and Log Activities
  • Template-enabled Creation and Composition
  • Failsafe Video Bypass
  • Discrete and Embedded Audio Support
  • Unlimited Layers to Create and display fullest range of Visuals
  • Output full range of On-Air Graphics: Logo, Clock, Animations, Full Frame
  • Graphics, Text, Objects and Images, Scrolls, Ads, Newsflash, Breaking
  • News, Tables and Graphs
  • Co-ordinated and collaborative Team work over network. License-free and
  • unlimited Clients, local or remote, can Contribute and Manage
  • Video Squeeze (DVE Effect)
  • Generates As-Run Logs and Commercial Reports for Advertisements Displayed
  • Import and Output On-Air Items Created in 3DS Max, After Effects, Maya, etc.

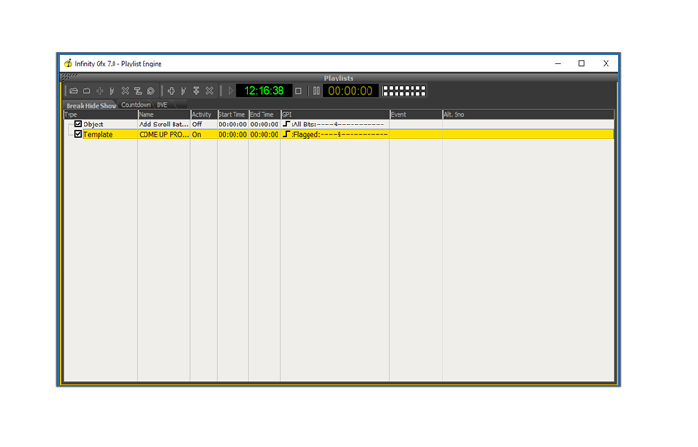

  • Playlists-assisted Scheduling and Output
  • API for Third Party Application Development
  • Template Builder to create Layouts for Timeline and Key-Frame Based Animations

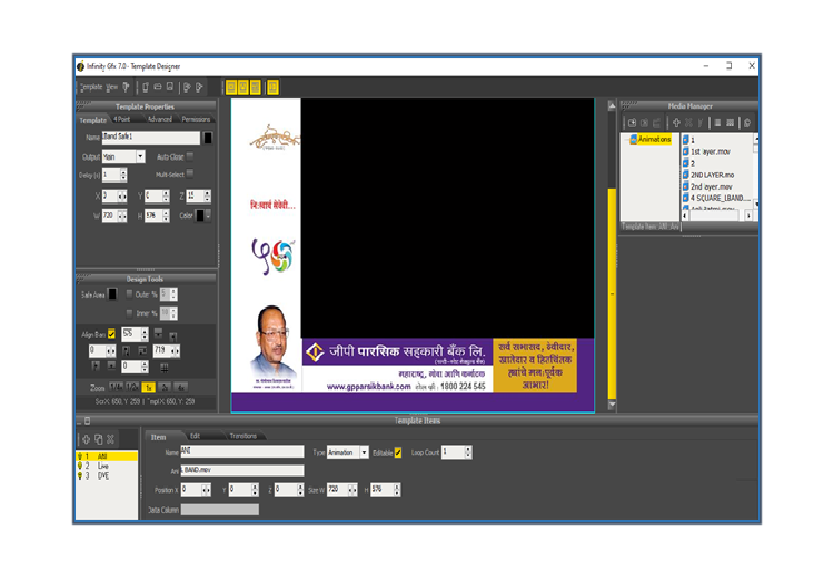

IGDesign (The designers console)

  • Allows easy Drag and Drop Interface to create any kind of Template
  • Auto thumbnails of media elements
  • Integrates with the in-built Media Manager
  • Optional Desktop Preview
  • Complete ODBC integration

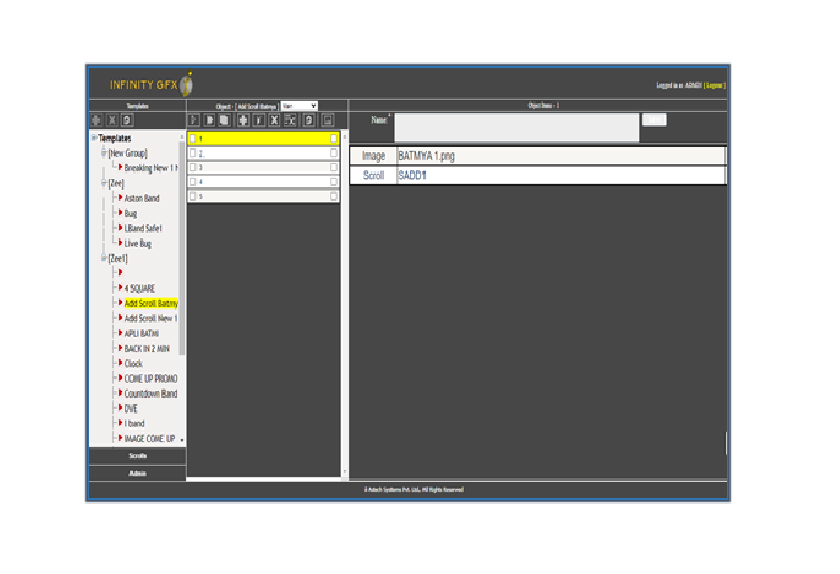

IGConsole (The operators console)

  • IGConsole (The operators console)
  • Graphical Data Entry Preview
  • New and improved User Interface
  • User specified grouping of Templates
  • Centralized Media Manager
  • Live update of Templates and Scrolls
  • Drag-drop Playlist creation

Template Builder (For advanced template designing)

  • Template Builder (For advanced template designing)
  • Create Animated Layouts in Template Builder
  • Call any rendered Animation from After Effects or 3DS Max
  • Animate Text and Logos in 3D space.Timeline-based Environment and Playout in Real-Time
  • Change Animated Logos in Real-Time
  • Numerous attractive and distinct Text Styles
  • Predefined Animated Templates

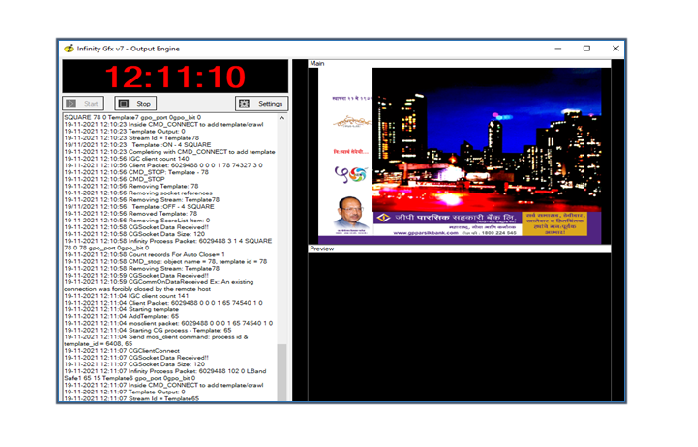

IGOutput (The output engine)

  • IG Output (The output engine)
  • Live Display of On-Air Objects
  • Playlist-integrated with Output
  • Objects-based Events
  • Control of non-related Events
  • As Run Log
  • 16 GPIs & 8 GPOs

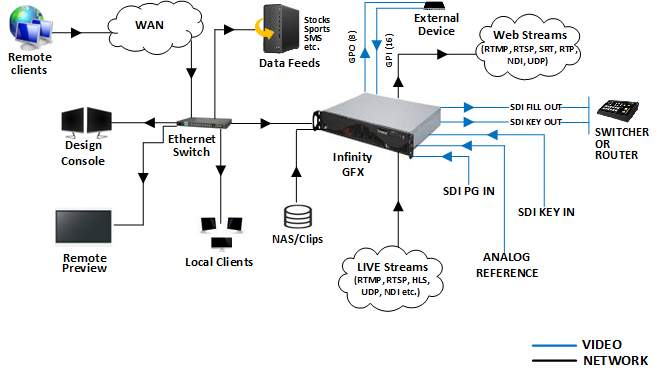

infinity workflow

Infinity Workflow



  • Chasis: 3U Rackmount, Rack rails included
  • Dimensions: HxWxD :5.25" (13.35 cm) x 19" (48.26 cm) x 25.5" (59.69 cm)
  • Weight: 45 lbs (20.41 kg)
  • Power Specifications: 760W triple-redundant power supply w/i2C built-in & fan speed control
  • Backpanel PCI/O: Four USB 2.0 ports, Two Gigabit Ethernet ports via RJ45
  • Recordable CD/DVD-RW drive for backup or system restore

Supported Video Resolutions

  • Serial digital component 4:2:2 video @
  • 1920x1080: /60i/59.94i/50i (SMPTE 274M)
  • 1920x1080: /30p/29.97p/25p/24p/23.98p (SMPTE 274M)
  • 1920x1080: /30psF/29.97psF/25psF/24psF/23.98psf (SMPTE 274M RP211)
  • 1280x720: /60p/59.94p/50p (SMPTE 296M)
  • 720x486 (525): /59.94i (ITU-R BT601)
  • 720x576 (625): /50i (ITU-R BT601)

Video Inputs

  • One Serial Digital (SD/HD) Program/Frame Grab input:- 4:2:2 SMPTE 259M and SMPTE 292M, 8/10 bit SDI (270 Mbps @ 525/625)
  • One Serial Digital (SD/HD) Key Input:- 4:2:2 SMPTE 259M and SMPTE 292M, 8/10 bit SDI (270 Mbps @ 525/625)
  • One Analog Reference Input:- Tri-level sync or blackburst - (terminated/non terminated under jumper control)
  • Genlock:HD/SD input or black burst (SD)/tri-level sync (HD)
  • Auto timing of HD/SD inputs: Within +/- 1/2 line window
  • Input Levels: SDI: 800mv P-P
  • Analog Reference: 1V P-P Black Burst of 0.6V P-P for Tri-level sync
  • Input Impedance:75 ohms

Video Outputs

  • One Serial Digital (SD/HD) Program/Fill Output:- 4:2:2 SMPTE 259M and SMPTE 292M, 8/10 bit SDI (270 Mbps @ 525/625)
  • One Serial Digital (SD/HD) Key Output:- 4:2:2 SMPTE 259M and SMPTE 292M, 8/10 bit SDI (270 Mbps @ 525/625)
  • Output Levels: SDI : 800mv P-P
  • Output Impedance:75 ohms

Additional Features

  • All Internal Video Processing at 12-bits Component 4:2:2:4
  • Video and Audio Bypass on HD/SD Program Input-to-Output in the event of a power fail of application reset
  • Shaped or unshaped fill signal processing
  • Internal watchdog timer to ensure hardware stability
  • Monitoring and signal status LEDs
